button appearing at the right of the application.)Use the Model Settings Properties panel to set Run Specs and Page settings for the model (see Getting Started Online for differences in online editing).
To open the Model Settings, switch to Edit mode and click on an empty space in the model. (If you've closed the Properties panel, you'll need to double-click, or slide it out with the button appearing at the right of the application.)

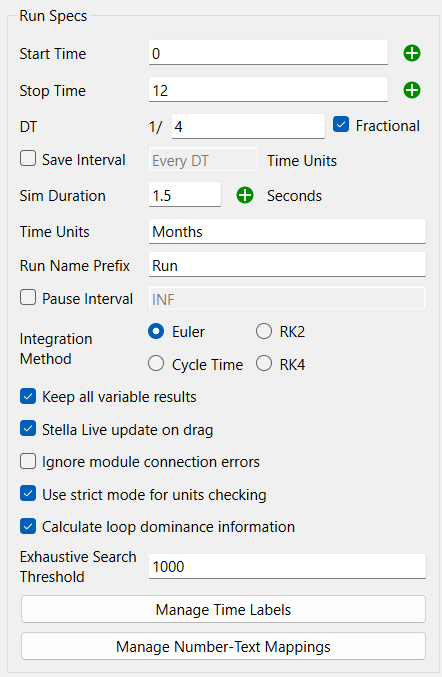

Use these boxes to specify the length of the simulation. The values you enter can be numbers, or you can select a model variable using the
button.
The values you enter here depend on the Time Units you've chosen for the model. For example, if Time Units is set to Months and you want to run the simulation for a year (12 months), you'd specify 0 and 12 (or 1 and 13, if you prefer to report financial style values) as the Start and Stop times. Or, if the unit of time is Years and you wanted to run the simulation from one specified year to another, you could type 1970 and 2010 as the Start and Stop times. If you wanted to run the simulation for 100 years, you could type 0 and 100 as the Start and Stop times.
The value in the "Stop Time" box has to be greater than the value in the "Start Time" box. If you specify variables for one or both the variable values should make this true.
Note: If the value in the DT box isn't evenly divisible into the length of simulation specified by the Start and Stop Time values, Stella Professional chooses the closest multiple of DT for the simulation length.
Note Variable start and stop times are computed for normal runs, but never for subsequent runs in Stella Live, sensitivity or optimization. If the variables defining them change during Stella Live, sensitivity or optimization it will not change the run length. For obvious reasons start time is only computed at the beginning of a normal run.
This box specifies the Delta Time (simulation time step), either by specifying a value in the box, or by specifying DT as a fraction.
Regardless of the method you use, choose a DT small enough to let you capture the shortest time frame of interest in your model. The trade-off here is speed versus accuracy. The more calculations per unit of simulation time, the longer it takes to complete a given simulation. For more about DT, see Overview: DT.
Normally when a model is run values are stored every DT. This provides the complete trail of computation for Euler Integration and a trail sufficient to reconstitute flow values into the changes in stocks for all integration techniques. For large model with many DTs this can result in substantial memory and storage use. By specifying a save interval you can substantially decrease this burden. This is especially important for data collection (see Data Collection) where the data need to be sent across the internet.
Click on the Save Interval checkbox to specify a save interval and enter it into the editing box. The value must be a multiple of DT.
Use this option to adjust the speed of the simulation by specifying how many seconds it should take to run the entire simulation. You can enter either a number, or a variable in the model that has a value to be used for the simulation duration. This can be a constant, or computed expression such as (STOPTIME - STARTTIME)/ speed where speed is the number of units of time computed each second. The specified duration variable, or speed in the example, can then be used with a slider or other input control on the interface. You can also have the duration increase during an interval of time or in response to certain conditions (e.g. IF Inventory < 10 THEN 20 ELSE 2 would slow down for low Inventory values).
Use to select the variable to use, or type in a number.
By slowing the simulation down, you allow model users time to view changes in the model as a run unfolds. This is especially useful on the interface. Use 0 if you do not want to slow down the simulation.
Enter a preferred Time Unit for model simulations in the Time Unit box. The unit of time you enter is used for display purposes and to compute units of measure for flows. It is also used as a basis for time labels (see Setting up Time Bounds) if you use units of time in a language other than English go to the Unit Editor dialog box and add your unit with the corresponding English time unit (for example, Months) as it equation.
Run name prefix specifies what name to give to each run. By default this is Run for Run 1, Run 2 and so on. Specify something else, such as Test for Test 1, Test 2 and so on. If it is blank, the runs will simply be numbered (1,2,...).
Use this box to specify the length of time after which you want the model simulation to pause the run.
For example, if the Time Unit is Months and the length of the simulation is a year, but you want the simulation to pause every quarter, you would enter 3 as the pause interval.
To have the simulation run without pausing, clear the Pause Interval check box. The Pause Interval shows INF. This is the default setting for the pause interval.
When the Pause interval is set at a value less than the length of the simulation, the model simulation runs will pause like you've specified. You can then review values, change constants, and continue the simulation with the new values.

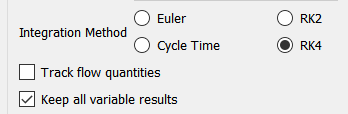

Select the integration method that you want to use for the run:
Note When you report values in tables a ~ will appear in front of the value for accumulated flows when Track flow quantities is not checked, or for instantaneously reported flows when it is. The ~ indicates an approximate value.
For more information about these integration methods, see Understanding integration methods. For more information about Cycle-time calculations and how time-stamping works, see Attribute and Cycle Time Tracking.
Select this check box to keep results for all variables in the model. If this check box isn't selected, only model variables that are assigned to output devices (like graphs or tables) will be recorded. This option is highly recommended, except for very large models that run for a very long time and would consume too much memory.
If you select this check box, a small graph will appear inside each stock or flow when the simulation is run, and the results for each variable will be available on the Results panel.
For larger models that take some time to simulate unchecking this option will make it easier to see the results of moving knobs on the model. This setting applies to both the model and the interface and can be changed in the Interface Settings Properties Panel where it is labeled "Recompute values on drag."
Normally, if you specify a variable in a module as a module input, or connection a variable to a module without finalizing the connection an error will be displayed showing the missing connection. Check this option to ignore that error. This is useful when working in modules saved as separate files that may not have all the connections from the main model.
In strict mode the software will check for dimensioned inputs into graphicals and builtins such as EXP and issue a warning message. Time is allowed as an input to graphicals and will not trigger a message. Dimensionless inputs result from normalization which is considered best practice in graphical construction.
Select this check box to compute loop dominance using Loops that Matter each time the model is run. This will animate the diagram during the simulation and compute and display the dominant loops at the end of the simulation. For more information see Loops That MatterTM Overview.
If this is set you can also specify the Exhaustive Search Threshold for loop discovery. This is the maximum number of feedback loops a model can have before the process of discovering loops is changes as described in Loop Discovery.
Click on Manage Time Labels to open the Manage Time Labels dialog box. This will allow you to set up and customize the labels that will be used for time in tables and graphs including setting up date formats.
Click on Manage Number-Text Mappings to open the Manage Number-Text Mappings dialog box. This will allow you to set up and customize the number-text mappings that can be used for displaying variable and time values.

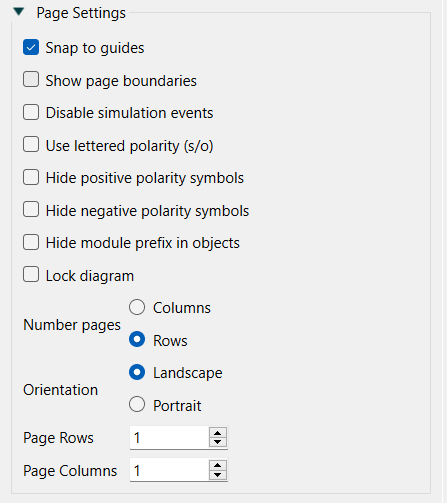

Hide negative polarity symbols, if checked, will not display the - or o polarities. This allows use of the polarity determination in the CLD Loops Panel without cluttering the diagram.

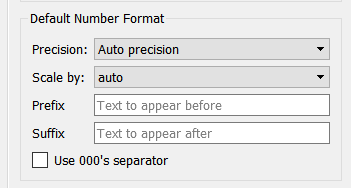

You can set the default number format that will be used when displaying variables. This will be used for variables that have not had a number format set explicitly from the Scales and Ranges Tab.

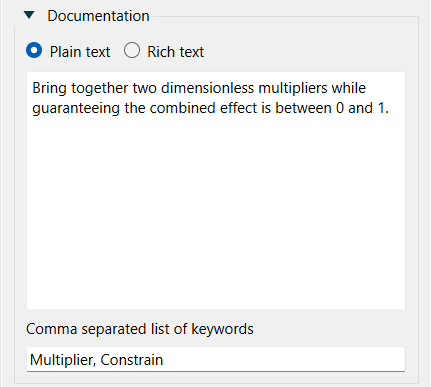

Use the documentation section to provide a description of the model as well as keywords. These can be helpful for others learning your model and will be used in Assemblies if your are using a model in Custom Assemblies
Plain text or Rich text determines the type of editor that will be available for text. Use Rich text if you want to change fonts or use bold, italic, or other effects. You can enter any text you want for the documentation.
Comma separated list of keywords provides indications of what issues the model does or could address and what types of formulations it employs.
Documentation does not need to be filled in, but it can be very helpful.
