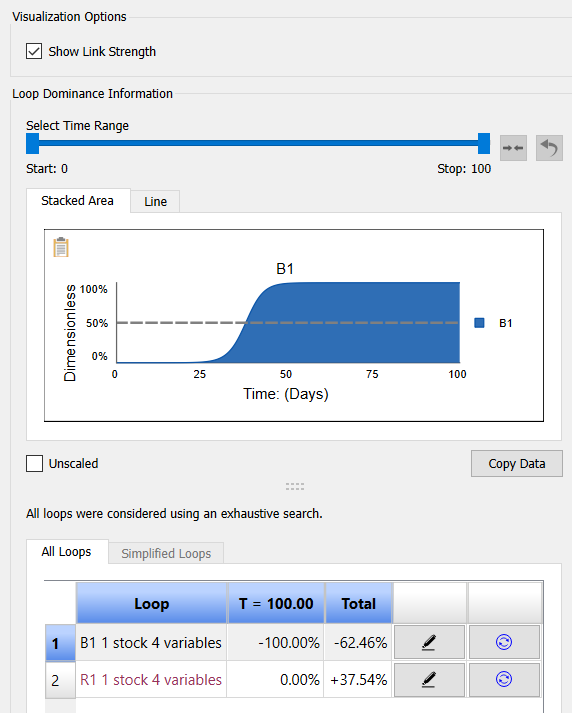

at the bottom of the Properties Panel (or on the panel itself if you have undocked it).The Loops Panel is available after you have simulated a model with the Loops that Matter option active. This option is set in the Model Settings Properties Panel. The panel will pop up the first time a model is run, and can be accessed anytime thereafter by clicking on the loops tab at the bottom of the Properties Panel (or on the panel itself if you have undocked it).
Show Loop Strength, if checked, will show the strength of links, and therefore loops, by using thicker lines for more important links (as measured at time T). The thickest lines are used for links which explain 100% of the behavior in the variable pointed to. Variables that do not explain changes are shown with the thinnest line. If this is not checked, the polarity of the links are show using colors (Red links are reinforcing (R/+). Blue links are balancing (B/-). Gray links are inactive. (Steel gray links are of unknown polarity (U)) but all have the same thickness.
Select Time Range determines what time range is used for the determination of loop contribution and display in the graphs. It is the same control used in the Results Panel and the Causal Lens™ and the three are all connected so that changes here will change what is displayed in the other places.

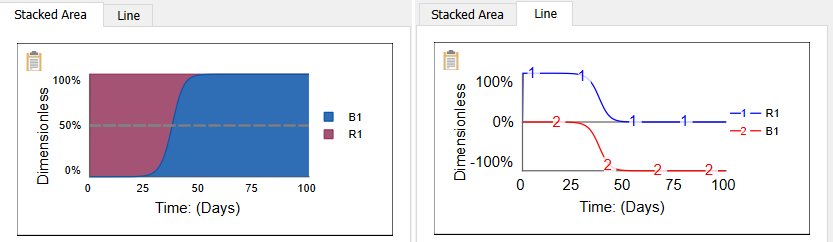

The graph displays the contribution of each loop to model behavior over time. This can be displayed as either a stacked area (where the total across all loops will add up to 100%), or as individual lines. Generally, the stacked area graph is easier to interpret, but the line graph can be helpful when comparing multiple loops with the same polarity.
You can add loops to the graph by clicking on them in the list, and remove them by clicking again. By default the first (most important) loop is shown in the graph. Clicking on more loops will explain more of the behavior:
You can use the
icon in the upper left to copy the graph to the clipboard for use in other applications (or the Copy Data button below to copy the values).
Unscaled, if checked, will display the graph without rounding the scales. This is most useful for line graphs.
Copy Data will copy the data shown in the graph as a set of numbers, with negative values for balancing loops and positive for reinforcing loops. The values are the same as shown in the line graph.
All loops were considered... is an informational message indicating whether it was necessary to selectively look for feedback loops as described in Loop Discovery.
This is a list of loops discovered in the model. The Simplified Loops tab is only available when viewing the simplified CLD as described in CLD Generation and noted below.
Loop is the name of the loop. These labels are created automatically based on the ranking of the loops, but will use the name you supply for a loop score variable if you have created one. Each loop is also described by the number of stocks and total variables it contains. The default loop name is a polarity, index and indication of the number of stocks and variables involved in the loop. The polarity abbreviations are:
B - Balancing (negative feedback loop).
Bu - Mostly balancing but there is a reinforcing loop a small fraction of the time.
R - Reinforcing (positive feedback loop).
Ru - Mostly reinforcing, but the loop becomes balancing a small fraction of the time.
U - Unknown. The loop is sometimes balancing and sometimes reenforcing.
Note When viewing a simplified CLD the Bu, Ru and U polarities can result from loops that combine both a balancing and reinforcing loop in the original model.
Note Click on the loop name to add the loop to the graph above it (or remove it if it is in the graph).
Note Hover over the name of the loop to see all the variables involved in it.

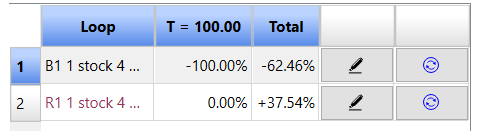

T= 100 shows the loop score at the current time. You can change this time by dragging the end time of the progress bar in the Run Toolbar The values will add to 100% (in absolute value).
Total shows the contribution of loops to behavior over the time range being displayed. This is an average of the instantaneous values. These values again will add to 100%.
highlights the loop on the model diagram.
will add a loop score variable in the model for the selected loop. When you click on this, you will be placed in edit mode. Click on the place in the model diagram you want the variable to appear. Much like a summing converter, there will be no links into this variable. After you have placed the variable you will be returned to the Loops Panel.
When you switch to viewing the CLD as described in CLD Generation there are some additions to the loops panel.

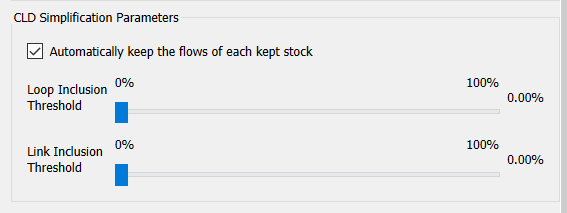

Use this to determine how much is displayed in the CLD. You can filter by variables, or by loops.
Automatically keep the flows... will always display the flow associated with any kept stock. This guarantees that the loops are physically interpretable, since stocks only change because of flows, and can be helpful for small models. For larger models unchecking this can help to reduce clutter.
Loop Inclusion Threshold determines how much behavior must be explained by a loop, before the loop will be included in the CLD. of A threshold of 0 means that every loop will be displayed, 100 means that no loops will be included because of this (unless there is only 1 loop). When this is set to 100 the link inclusion threshold becomes more important.
Link Inclusion Threshold determines how strong a link needs to be in order to be included. In this case the strength is measured by the amount of variation there is in he relative link score. This means that variables with only a single link coming in will not be included except when this is set to 0, or the variable is changing at some points in time and constant at others. This helps to focus attention on variables where the influence from other variables come together. Because some links may have a 100% variability, the maximum for this setting is actually slightly over 100%. Use the maximum to only add variables because of the loops they are involved in.
Not that both the threshold have a number of set points, since there are only a limited number of values where the diagram changes based on the various link and loop scores. This makes it much easier to find and get back to inclusion thresholds that you have used before, but it also means that the progression from 0 to 100% is not uniform.

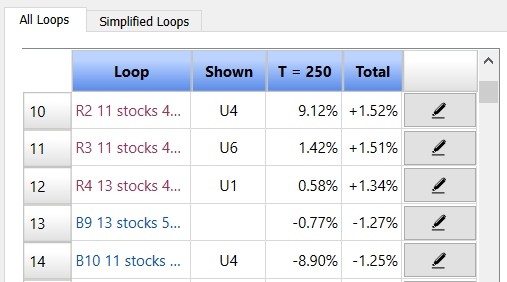

When viewing CLDs there list of loops will contain an indicator (Shown) of whether or not the original loop is included in the CLD,. If it is, this will give the simplified loop that the loop maps to, if not it will be blank. More than one of the original loops can map to the same simplified loop (Both R2 and B10 map to U4 in this example). In the case of B9, the loop is not represented at all in the simplified diagram.

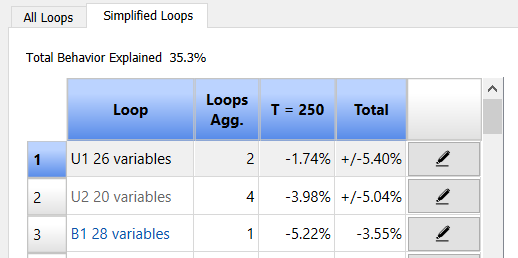

The Simplified Loops tab presents the loops of the simplified diagram and shows how they relate to the original loops:
The Loops Agg. column indicates how many loops were combined to form a a loop in the simplified CLD. In this case U1 is formed by combining 2 of the original loops, and U2 by combining 4 of the original loops, while B1 is a loop in the original model. The first two are marked U because they combine reinforcing and balancing loops - a sign the diagram might be oversimplified.

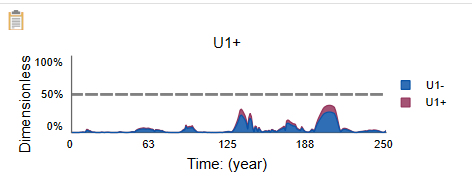

When positive and negative loops are combined their loop score graph is split into the positive and negative parts:
This is helpful in understanding how significant the opposing components are. In this case they are significant enough that the CLD should be recognized as an oversimplification.
