Find window

Use the Find window (often called simply the Find) to find variables in your model. Once you find the variable you're looking for, you can:

To open the Find window, choose Find from the Model menu.

Note: The Find window stays open while you work on the model, unless you close it by clicking in the Find window.

Note: The Selection History panel, after you open it, will keep track of any variable you select in the Find, and allow you to return to it by clicking on it in that panel.

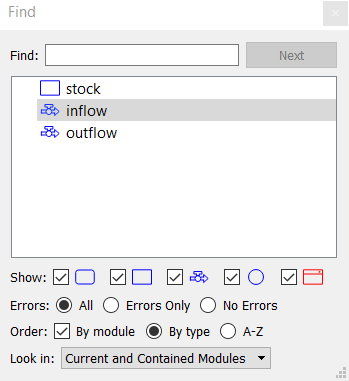

When you first open the Find window, it displays a list of all variables in the model. Use the options in the Find window to narrow down the list to find the variable you're looking for.

Find

Type the first letter (or letters) of the name of the variable you want to find. The Find window updates to display only those variables that match the letters you type.

Show

Select the check boxes for the types of variables you want to include in the search: modules, stocks, flows, converters, or sectors. By default, the Find window looks for all variables.

Errors

Determine whether you want to see variables with errors or without.

Order

Select the order in which you want the list of found items to be displayed:

Look in

Select the part of the model in which you want to find variables: Entire Model, Current Module Only, or Current and Contained Modules.

[]

[]
