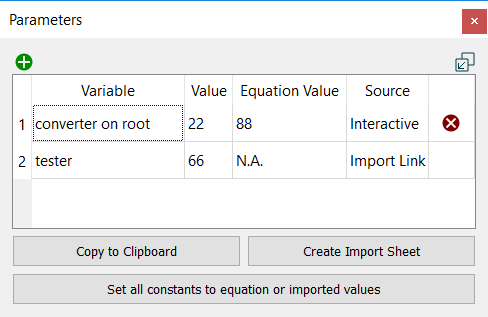

Parameter Control Panel

Use the Parameter Control Panel to see what variables have been controlled, either interactively or from the Import Data dialog box, and to control variables. It's a dockable panel and can be opened by selecting Open Parameter Control from the Window menu.

Add a variable to the list. The Find window will open. Select a variable and it will be added to the list. If the variable is arrayed, the Choose Subscript dialog box will open. You can control each element of an array, but you have to do select them one at a time.

List of Controlled Variables

Shows the list of all variables that have values set on them. Everything not in this list will use the equation specified for it when it's computed.

Variable is the name of the variable being controlled. In an array, it will be the array element (Population[DadeCounty]).

Value is the value the variable will take on instead of the value specified by its equation. For stocks, this will be the new initial value for the stock. For everything else, it will be the value throughout the simulation (except that flows may be further constrained to a different value, depending on their associated stock values). Type in a new value to change this.

Equation Value is the value in the equation. This will display NA for variables that do not have a constant equation.

Source specifies the source of the specified value. These can come from two places:

• Interactive values are set either directly from this dialog, from the Results Panel when working on the model, from spinning a knob in Explore mode on the model window, or from changes made on the interface in Experiment or Presentation mode. Making a change in any one of these places will effectively change it in all the others, so there's only a single source identified.

• Import Link indicates that the value was set from an import specified in the Import Data dialog box.

  Note:If you restore an interactively controlled variable that has an import link it will change to the import link value (not the equation value).

  Note:To restore Import Links open the Import Data dialog box and uncheck the active checkbox for the sheets you no longer want to use.

  Note: Values imported using the Overwrite value option on the Import Data dialog box are not shown here. Those values are changed directly in their equations.

Remove the parameter control, setting the value back to the equation (or the Import Link value if this variable has an import link). This is only active for Interactive controls.

Exporting and Saving Control Values

Copy to Clipboard will copy the names and values active in the dialog in a format that can be pasted into a Parameter sheet.

Create Import Sheet will prompt you for the name of a file to save the current control values to. The file can subsequently be used as a Parameter sheet.

Set all constants to equation of imported value will reset everything in the list that is imported or has a constant equation to the corresponding value. Nothing will be removed from the list, but the values will be the same as they would be if the item were removed. This action will not change overrides of variables that are not constants. To change those click on the .

Note: The Restore Inputs and Restore All Devices menu items on the Model Menu/Interface Menu (Interface) will remove all entries that are Interactive from this list resetting them to their model values or equations.
